96 Well 3 Drops Sitting Drop Plate

 SN:XQ-P-96S-C

The 96 well 3 drops sitting crystallization plate is mainy designed for the sitting drop methods of protein crystallization screening,it contains 96 reservoir well, each well is equipped width three drop holes. The 96 reservoir wells are designed width 8 raws and 12 columns. The plate has the standard SBS footprint, thus suitable for using automatic drop dispansing and imaging robot.

Features

a.  Meet SBS requests,suitable for automatic drop dispensing and imaging robot.
b.  96 reservoir,each reservoir well is equipped with three drop wells, each drop well can accommodate up to 2μl protein solution and mother liquor pool 200ul.
c.  The wide reservoir wall（1.4 mm）provides a good tape sealing space to open and re-seal a well.
d.  When crystallization solution contains low molecule weight hydrophobic reagents like isopropanol, a small drop volume is highly recommended
(<200nanoliters).
e.  Excellent optic properties and strong chemical resistance

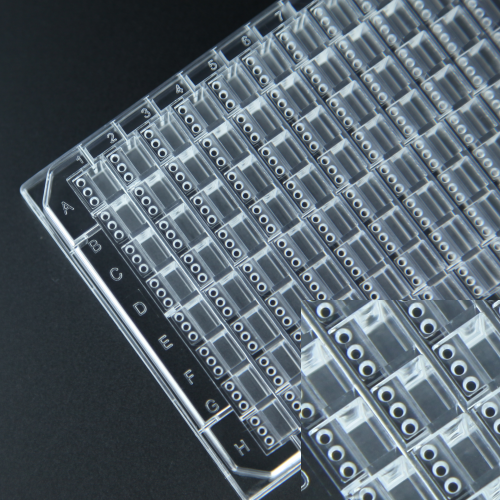

Product appearance
